DockerCompose部署SkyWalking

发表于 分类于 阅读次数： 本文字数： 187 阅读时长 ≈ 1 分钟

DockerCompose 部署 SkyWalking

配置文件

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
version: "3"

services:
  elasticsearch:
    image: elasticsearch:8.8.0
    container_name: elasticsearch
    ports:
      - 9200:9200
      - 9300:9300
    volumes:
      - ./data/elasticsearch:/usr/share/elasticsearch/data
    environment:
      - TZ=Asia/Shanghai
      - xpack.security.enabled=false
      - discovery.type=single-node
      - bootstrap.memory_lock=true
      - "ES_JAVA_OPTS=-Xms1024m -Xmx1024m"
    networks:
      - test-network
  skywalking-oap:
    image: apache/skywalking-oap-server:9.4.0-java17
    container_name: skywalking-oap
    restart: on-failure
    ports:
      - "11800:11800"
      - "12800:12800"
    environment:
      TZ: Asia/Shanghai
      SW_STORAGE: elasticsearch
      SW_STORAGE_ES_CLUSTER_NODES: elasticsearch:9200
      JAVA_OPTS: "-Xms2048m -Xmx2048m"
    depends_on:
      - elasticsearch
    networks:
      - test-network
  skywalking-ui:
    image: apache/skywalking-ui:9.4.0
    container_name: skywalking-ui
    restart: on-failure
    ports:
      - "8088:8080"
    environment:
      TZ: Asia/Shanghai
      SW_OAP_ADDRESS: http://skywalking-oap:12800
    depends_on:
      - skywalking-oap
    networks:
      - test-network

networks:
  test-network:

执行命令 docker compose -f .\docker-compose-tracing.yaml up -d
访问 http://localhost:8088


使用

  1. 下载 https://archive.apache.org/dist/skywalking/java-agent/9.0.0/apache-skywalking-java-agent-9.0.0.tgz

  2. 启动参数

1
2
3
4
-javaagent:D:\apache-skywalking-java-agent-9.0.0\skywalking-agent.jar
-Dskywalking.agent.service_name=demoService
-Dskywalking.plugin.jdbc.trace_sql_parameters=true
-Dskywalking.collector.backend_service=127.0.0.1:11800

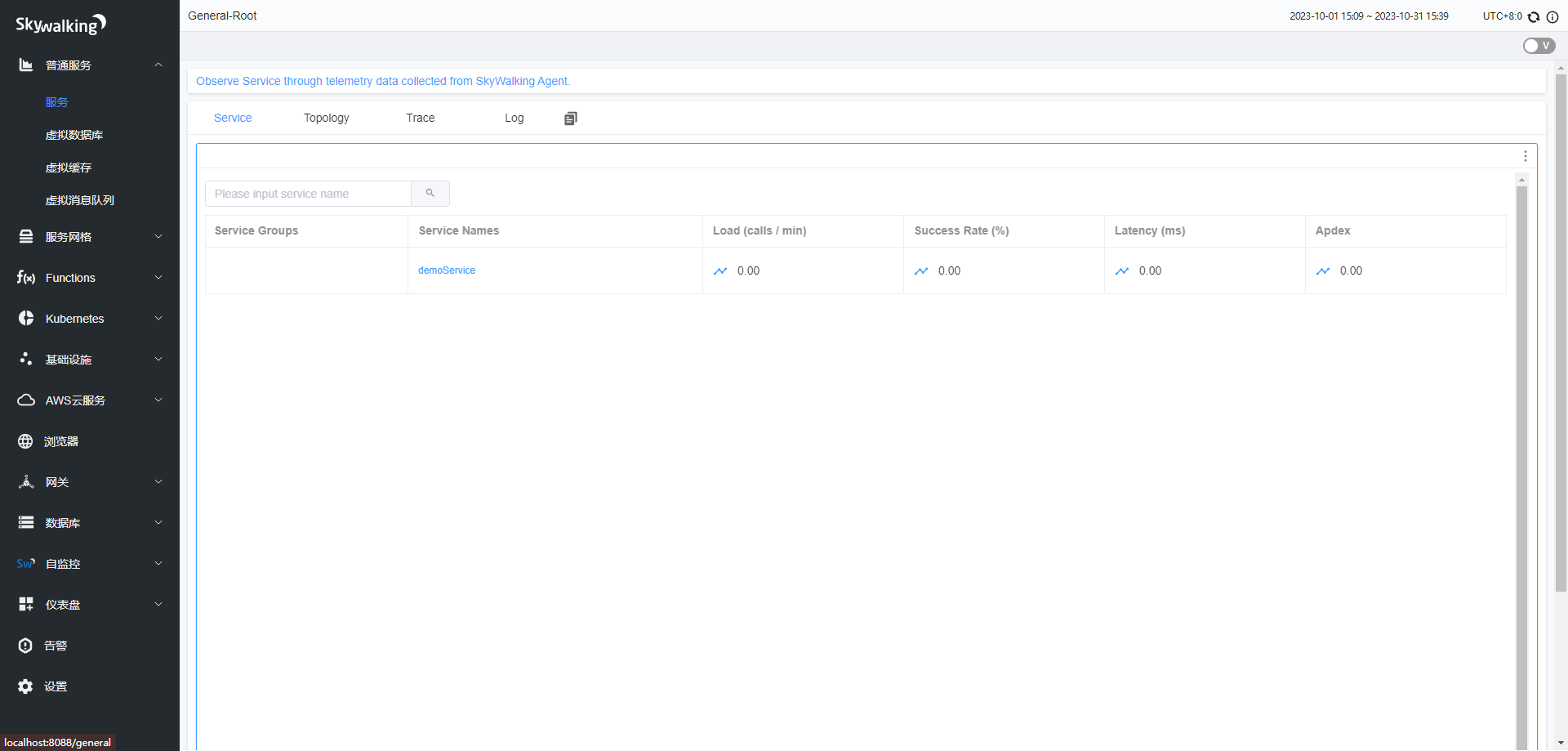

  1. 访问接口后刷新页面
